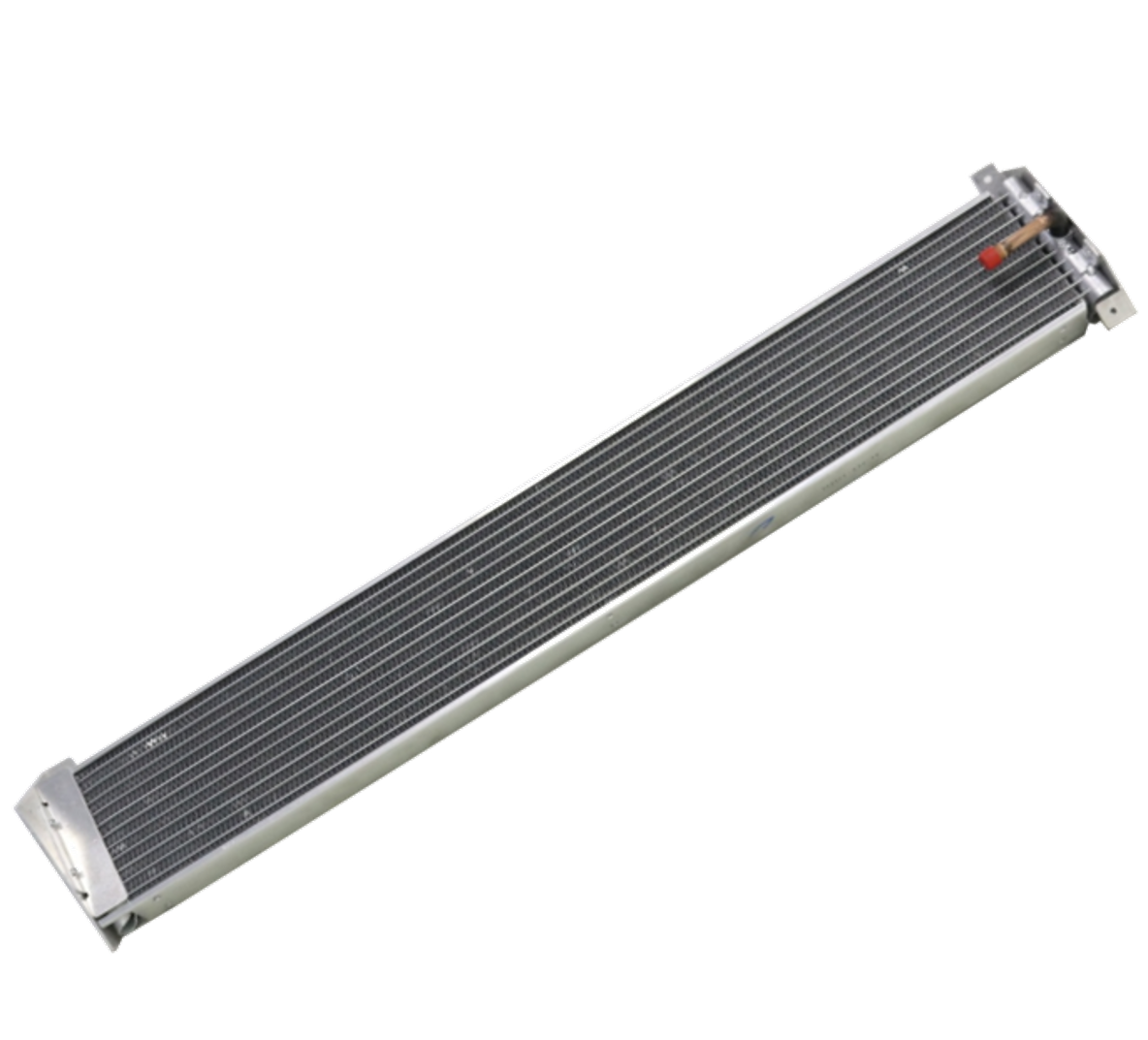

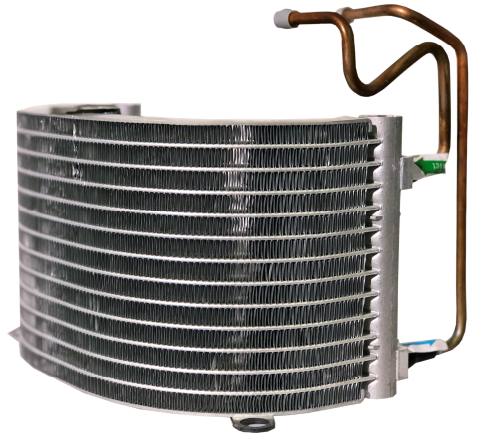

Commercial Refrigeration MCHX
  • Ambient Temperature -40℃ ～ 72℃ (-40℉ to 161.6 ℉)
  • Refrigerant Temperature -40℃ ～ 150℃ (-40℉ to 302℉)
  • Burst Pressure ≥13.5MPa
  • Working Medium R410A\ R134a\ R22\ R290\ R407C\ R404A\ R454B and other commonly used refrigerant, Antifreeze (Ethylene glycol), Fluorinated liquid, polydimethylsiloxane, Hydraulic oil and other insulating media.
  • Mounting Sheet metal hood, side plate rivets, side plate brackets, header brackets
  • Coating Grey powder, black powder, black electrophoresis, passivation
  • Bend C type、O type

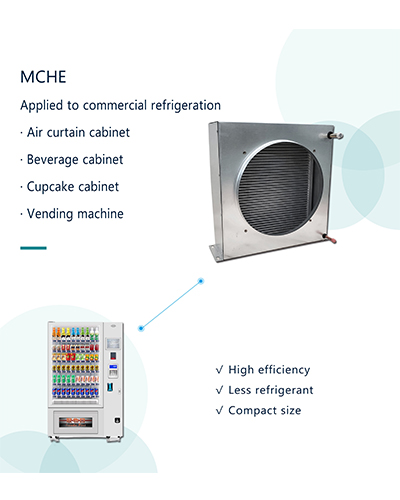

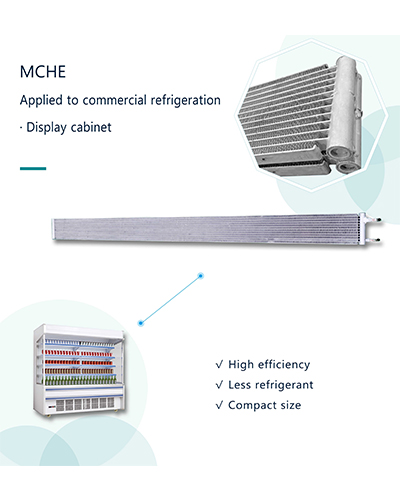

MCHE used in Display Cabinet, Commercial Refrgerator, Ice Maker, Ice Cream Machine, Beverage Machine, Vending Machine, etc..
Send Message
application field
Commercial supermarket freezers
Commercial supermarket freezers

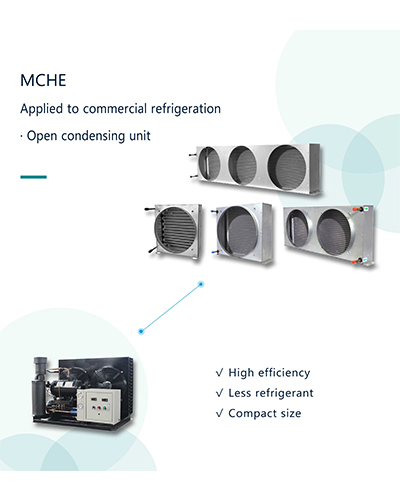

Industrial open condensing unit

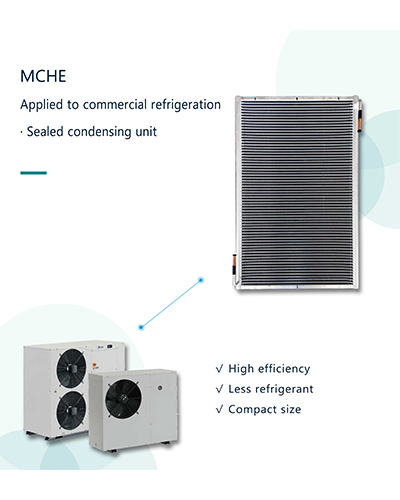

Industrial sealed condensing unit
